Product Details

In the Solar & Wind Industry, certain applications require multiple windings. In addition to the standard primary and secondary windings, an additional tertiary winding may be used. This tertiary, or even fourth or fifth winding, enables enhanced flexibility in complex grid or industrial applications.

Electrical Specifications

• ❖ Multi winding Transformers up to 5 windings
• ❖ Step-up IDT Transformers up to 10 MVA
• ❖ Primary low voltage Transformer up to 800V
• ❖ Secondary high voltage up to 33kV

Insulation and Cooling

• ❖ Insulation Class: A or F
• ❖ Cooling Type: ONAN (Oil Natural Air Natural)
• ❖ Insulating Oil: Mineral oil or biodegradable oil
• ❖ Hermetically sealed tank with corrugated design for oil expansion
• ❖ No conservator required – fully sealed system prevents moisture ingress

Advantages

• ❖ Supports complex multi-winding configurations
  Enhances flexibility for industrial and grid applications.
• ❖ Step-up capability for industrial and grid applications
  Provides voltage conversion for demanding systems.
• ❖ Maintenance-free operation
  Sealed design eliminates the need for regular maintenance.
• ❖ Enhanced safety and longer oil life
  Minimized risk of contamination and greater durability.
• ❖ Compact and space-saving construction
  Optimized design for minimal footprint without compromising efficiency.
• ❖ Reliable performance in demanding environments
  Built to perform in harsh operating conditions.

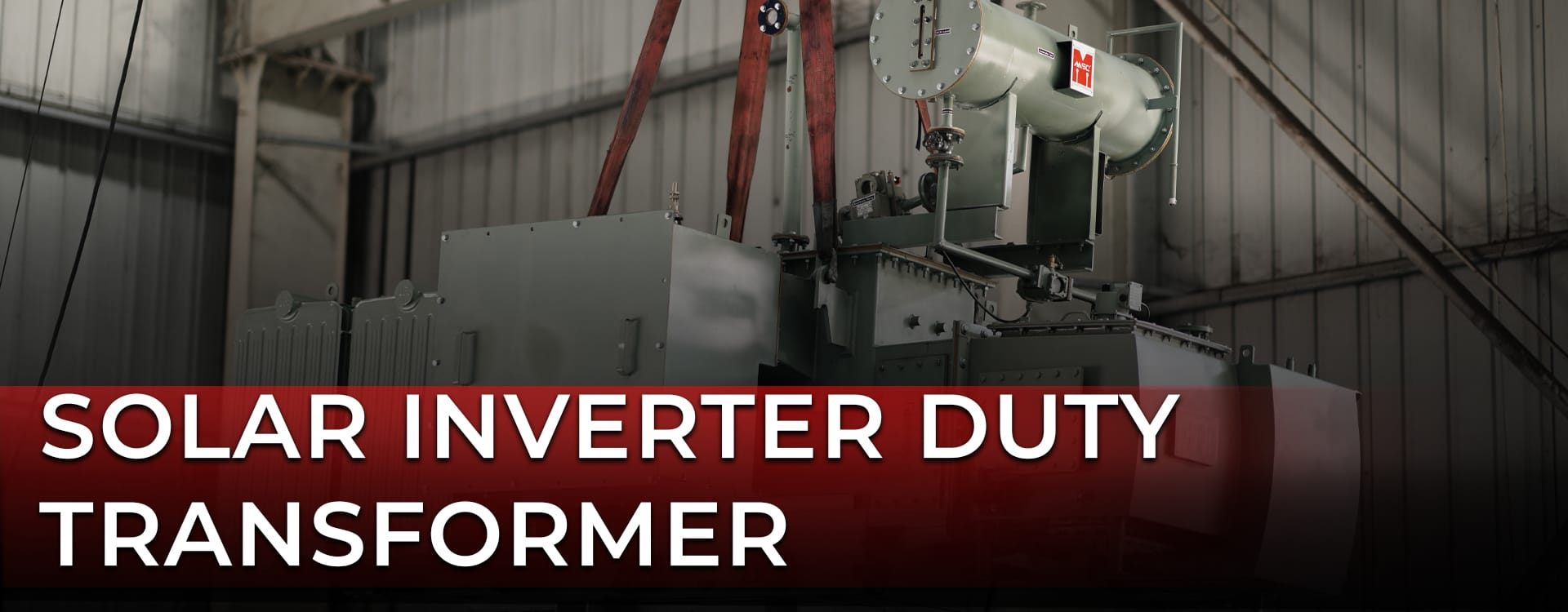

This Solar Inverter Duty Transformer offers a compact, efficient, and reliable solution for complex power applications, combining flexible voltage configurations with maintenance-free operation and long-lasting performance.
